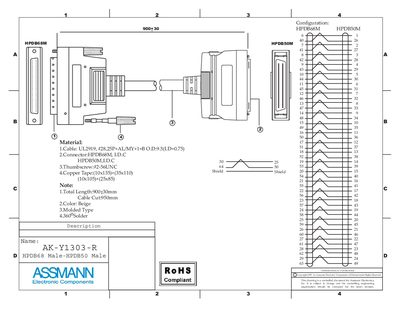

This one‑page drawing describes the Assmann AK‑Y1303‑R cable assembly. It lists the configuration, material, connector types, dimensions, color and other mechanical details. The document also notes RoHS compliance and includes drawing control information for Assmann Electronics.
| Total Length | 900+430mm |
|---|---|
| Cable Cut | 950mm |
| Color | Beige |
| Cable Specification | UL2919, #28,25P+AL/MY+14B O.D:9.5(LD=0.75) |
| Thumbscrew | #2-56UNC |
| Copper Tape | (10x135)+(35x110) Shield |
| Molded Type | 24 TaN |
| Solder STA | 360° |
The total length is 900+430 mm.
The cable is beige.
