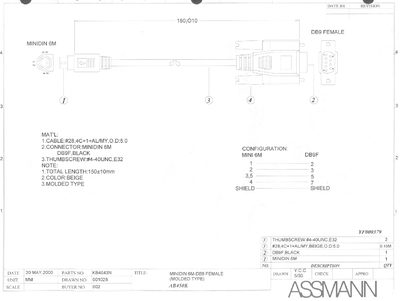

The Assmann KB4043N is a MiniDIN 6‑position DB9 female connector designed for reliable mating in industrial applications. It features a molded body and a shield to protect signal integrity.
Key specifications include a total length of 15010 mm, beige color, a #28,4C+1+AL/MY cable with 5.0 mm outer diameter, and a #4‑40UNC thumb screw (E32). The part number is KB4043N and the connector type is MiniDIN 6M DB9 female.
| Total Length | 15010 mm |
|---|---|
| Color | Beige |
| Molded Type | |
| Cable | #28,4C+1+AL/MY, O.D:5.0 mm |
| Thumb Screw | #4-40UNC, E32 |
| Connector Type | MiniDIN 6M DB9 Female |
| Part Number | KB4043N |
The total length is 15010 mm.
It is beige.
The cable is #28,4C+1+AL/MY with an outer diameter of 5.0 mm.
It uses a #4‑40UNC thumb screw, material E32.
