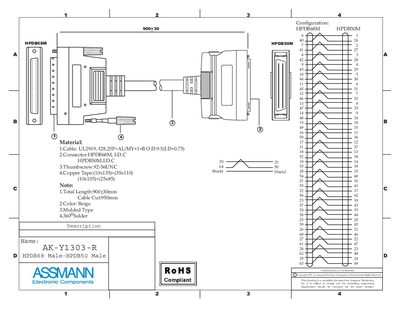

This leaflet describes the configuration and physical details of the Assmann AK‑Y1303‑R electronic component. It lists the cable type, connector models, thumbscrew size, copper‑tape dimensions, total length, and colour.
The document is intended for engineers and technicians who need the exact part specifications for design, assembly, or maintenance. All values are presented as‑is and the drawing is marked as an unpublished, controlled document.
| Cable | UL2919, #28,25P+AL/MY+14B O.D:9.5(LD=0.75) |
|---|---|
| Connector | HPDB68M, HPDB50M |
| Thumbscrew | #2-56UNC |
| Copper Tape | (10x135)+(35x110) |
| Total Length | 900+430 mm |
| Cable Cut | 950 mm |
| Color | Beige |
| Molded Type | 24 TaN |
The total length is 900+430 mm.
The component is coloured Beige.
The part uses HPDB68M and HPDB50M connectors.
A #2‑56UNC thumbscrew is specified.
