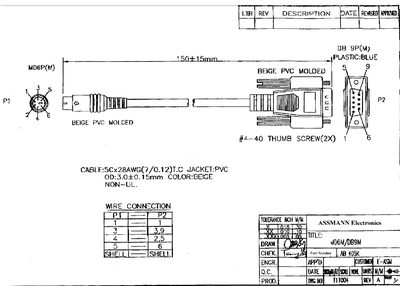

The Assmann AD6M/DB9M handbook gives an overview of the product, listing part numbers, physical description, and key components. It includes details such as the plastic color, housing material, and thumb‑screw size.
The manual also specifies the cable type, jacket material, and wiring connections required for installation and service. Technical data such as cable gauge and dimensions are provided for accurate assembly.
| Cable size | 5Cx28AWG (7/0.12) |
|---|---|
| Cable jacket material | PVC |
| Thumb screw size | #4‑40 |
| Housing color | Beige |
| Housing material | Beige PVC molded |
| Plastic type | Blue |
The cable is 5Cx28AWG (7/0.12) with a PVC jacket.
The housing color is beige.
