This document introduces a product called SERIAL ATA SIGNAL CABLE, manufactured by 1/1 TECHNOLOGY CO., LTD. and ASSMANN Electronics, Inc. The product has a high-quality signal transmission capability.

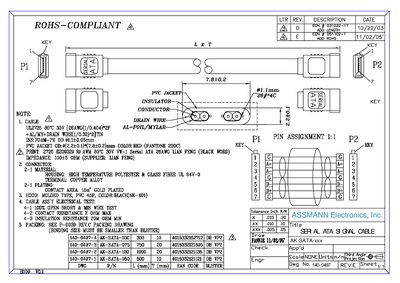

This datasheet provides the mechanical and electrical specifications of Assmann's Serial ATA signal cable (model E-SSM 140-0497). It details the cable construction, materials, and performance test results.
Key information includes conductor size, impedance, temperature rating, and packaging details, allowing engineers to verify compatibility with SATA interfaces.
| Conductor size | 26AWG (0.404 mm²) |
|---|---|
| Impedance | 100 Ω ±5 Ω |
| Temperature rating | 80 °C |
| Cable jacket material | PVC, high‑temperature polyester & glass fiber |
| Cable color | Red (Pantone 200C) |
| Contact resistance | ≤2 Ω |
| Insulation resistance | ≥20 MΩ |
The cable has an impedance of 100 Ω ±5 Ω.
The conductors are 26 AWG (approximately 0.404 mm²).
The cable is rated for up to 80 °C.
The jacket is red, specified as Pantone 200C.
