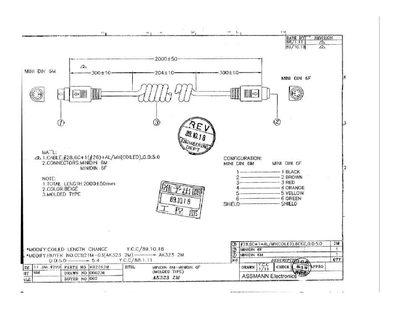

This handbook describes the technical details of the Assmann KB2263M Mini DIN cable assembly. It lists the cable construction, connector types, total length, color options, and pin configuration.
The document is intended for engineers and technicians who need to select or verify the correct cable and connector configuration for their applications, offering clear reference data for part numbers and modifications.
| Total Length | 2000+ 50mm |
|---|---|
| Cable Color | Beige |
| Connector Type | Mini DIN GM, Mini DIN GF |
| Cable Construction | $28,604 1(#26)+AL/MY(COILED),0.0:5.0 |
| Pin 1 Color | Black |
| Pin 2 Color | Brown |
| Pin 4 Color | Orange |
| Pin 5 Color | Yellow |
| Pin 6 Color | Green |
The total length is 2000+ 50mm.
The cable is beige.
The assembly uses Mini DIN GM and Mini DIN GF connectors.
