The document describes the features and characteristics of the products.

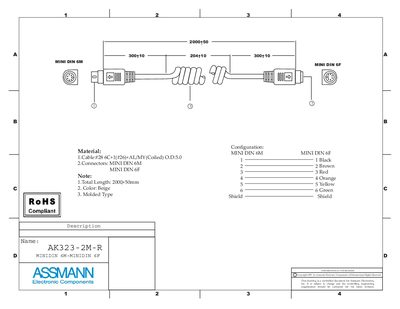

This handbook describes the AK323-2M-R Mini DIN connector assembly. It lists the material, cable construction, connector types, total length, and color coding for each wire.
The document is intended for engineers and technicians who need to select the correct parts and install the connector according to the specified configuration and RoHS compliance.
| Cable type | #28 6C+1(#26)}+AL/MY (Coiled) |
|---|---|
| Connector type (1) | MINI DIN 6M |
| Total cable length | 2000+50 mm |
The total cable length is 2000+50 mm.
