This handbook describes the KB4042N connector assembly, listing its cable, connector, thumb screw, and configuration parameters. It includes part numbers, dimensions, and material specifications for each component.
The document is intended for engineers and technicians who need to select, install, or service the KB4042N Mini‑DIN 6F connector, offering clear data on length, color, and molded type.

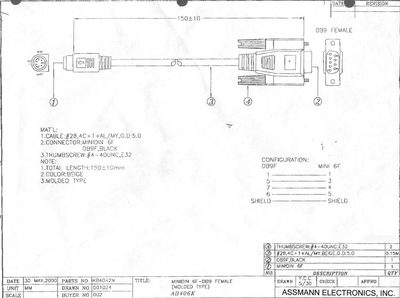

| Cable | #28,4C+1+AL/MY,O.0:5.0 |
|---|---|
| Connector type | MINIDIN 6F |
| Thumb screw | #4 —4QUNC,£32 |
| Total length | 1950 mm |
| Color | BEIGE |
| Molded type | 5 3 |
The KB4042N uses a MINIDIN 6F connector.
The cable is specified as #28,4C+1+AL/MY,O.0:5.0.
The total length is listed as 1950 mm.
The connector is beige.
