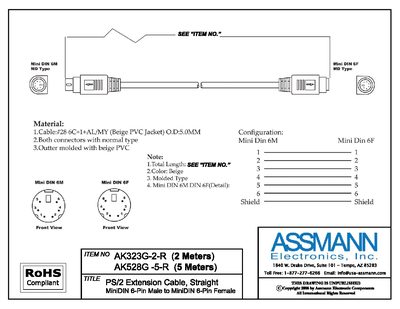

The handbook describes two Assmann extension cables that use a Mini DIN 6‑pin male connector (Mini DIN 6M) to a Mini DIN 6‑pin female connector (Mini DIN 6F). Both cables feature a beige PVC jacket, an outer diameter of 5.0 mm, and a shielded construction. The AK323G-2-R is a 2‑meter cable, while the AK528G-5-R is a 5‑meter cable.
The document includes compliance information and contact details for Assmann Electronic Component, including a toll‑free phone number and email address for further assistance.
| Cable material | #28 6C+1+AL/MY (Beige PVC Jacket) |
|---|---|
| Outer diameter | 5.0 mm |
| Length (AK323G-2-R) | 2 m |
| Length (AK528G-5-R) | 5 m |
| Color | Beige |
| Male connector type | Mini DIN 6M |
| Female connector type | Mini DIN 6F |
| Shield | Yes |
It uses a Mini DIN 6‑pin male connector (Mini DIN 6M) to a Mini DIN 6‑pin female connector (Mini DIN 6F).
The cable has an outer diameter of 5.0 mm.
The cable jacket is beige.
