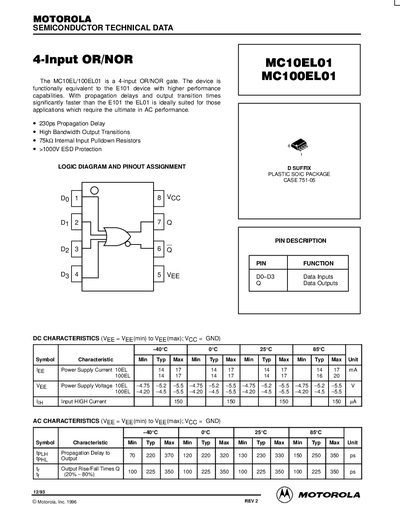

The MC10EL/100EL01 is a 4-input OR/NOR gate that is functionally equivalent to the E101 device with higher performance capabilities. With propagation delays and output transition times significantly faster than the E101, the EL01 is ideally suited for those applications which require the ultimate in AC performance.
The MC10EL01/MC100EL01 devices are 4‑input OR/NOR logic gates offering fast propagation delays and high‑bandwidth output transitions. They feature 75 kΩ internal input pull‑down resistors and over 1000 V ESD protection, making them suitable for high‑speed AC applications.
The gates are supplied in a plastic SOIC package (case 751‑05) with detailed pin assignments and electrical characteristics. Typical power‑supply current is 14‑17 µA, VEE voltage ranges from –4.75 V to –5.5 V, and output rise/fall times are 100‑350 ps. Mechanical dimensions and tolerances are provided for PCB layout.
| Propagation Delay | 230 ps |
|---|---|
| Input Pull‑down Resistor | 75 kΩ |
| ESD Protection | >1000 V |
| Power‑Supply Current | 14‑17 µA |
The propagation delay is 230 ps.
It is supplied in a plastic SOIC package, case 751‑05.
The device provides greater than 1000 V of ESD protection.
