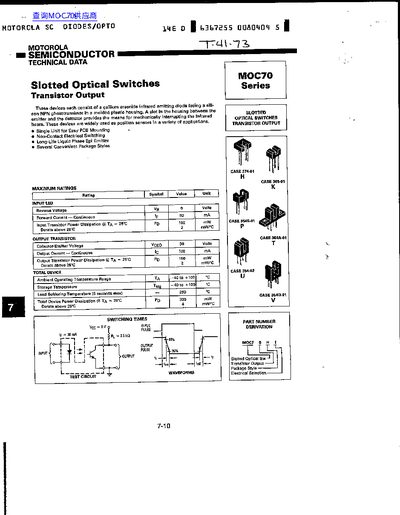

The MOC70 Series are slotted optical switches that combine a gallium arsenide infrared emitting diode with an NPN phototransistor in a molded plastic housing. The devices are designed for non‑contact electrical switching and are offered in several convenient package styles for easy PCB mounting.
The datasheet lists maximum ratings, electrical characteristics, typical performance curves, and mechanical dimensions, giving designers the information needed to integrate these switches into position‑sensor applications.
| Output Current (continuous) | 100 mA |
|---|---|
| Ambient Operating Temperature Range | -40 to +100 °C |
| Lead Soldering Temperature (5 s max) | 260 °C |
The device is rated for a continuous output current of 100 mA.
It operates from –40 °C to +100 °C ambient temperature.
Lead soldering is permitted up to 260 °C for a maximum of 5 seconds.
