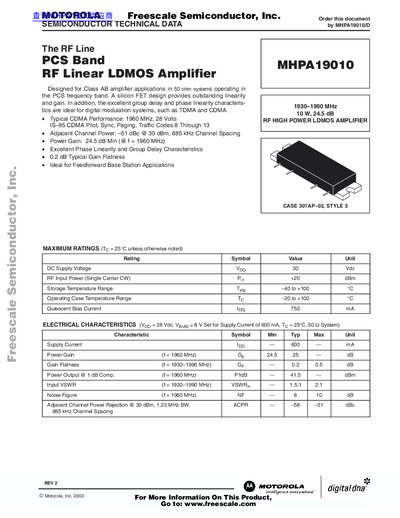

MHPA19010 is a Motorola RF device designed for Class AB amplifier applications in 50 ohm systems operating in the PCS frequency band. A silicon FET design provides outstanding linearity and gain. In addition, its excellent group delay and phase linearity characteristics are ideal for digital modulation systems, such as TDMA and CDMA.
The MHPA19010 is a Class AB RF linear LDMOS amplifier designed for PCS band applications such as TDMA and CDMA. It delivers up to 10 W output power with a typical gain of 24.5 dB and excellent phase linearity.
Key specifications include a frequency range of 1930‑1990 MHz, 30 Vdc supply voltage, 750 mA quiescent bias current, and a typical gain flatness of 0.2 dB. The device is packaged in a CASE 301‑AP‑02, STYLE 3 enclosure and complies with standard dimension tolerances.
| Frequency Range | 1930‑1990 MHz |
|---|---|
| Output Power | 10 W, 24.5 dB |
| DC Supply Voltage | 30 Vdc |
| Quiescent Bias Current | 750 mA |
| Power Gain (1960 MHz) | 24.5 dB |
| Gain Flatness | 0.2 dB typical |
| Power Output @ 1 dB Compression (1960 MHz) | 41.5 dBm |
| Input VSWR | 1.54 |
| Noise Figure (1960 MHz) | 8 dB typical |
It operates from 1930 MHz to 1990 MHz.
The typical power gain is 24.5 dB at 1960 MHz.
The DC supply voltage is 30 Vdc.
The quiescent bias current is 750 mA.
