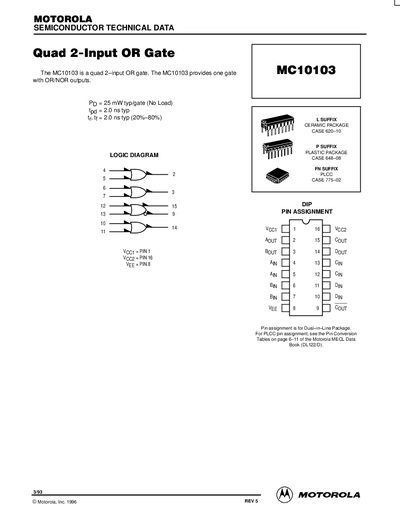

The MC10103 is a quad 2-input OR gate that provides one gate with OR/NOR outputs. It has low power consumption and fast response time.
The MC10103 is a quad 2‑input OR gate that provides four independent OR/NOR functions in a single package. It is intended for high‑speed digital logic applications and offers typical propagation delay of 2 ns and low power consumption.
The device is offered in several packages, including a ceramic DIP (Case 620‑10), plastic DIP (Case 648‑08), and PLCC (Case 775‑02). Detailed outline dimensions and tolerances are provided for each package, along with mechanical notes on datum references and allowable mold flash.
| Propagation Delay (typ) | 2.0 ns |
|---|---|
| Rise Time (20‑80%) (typ) | 2.0 ns |
| Power Supply Drain Current (typ) | 8 mA |
| Input Current (typ) | 0.3 µA |
The MC10103 has a typical propagation delay of 2.0 ns.
Each gate dissipates about 25 mW typical at no load.
