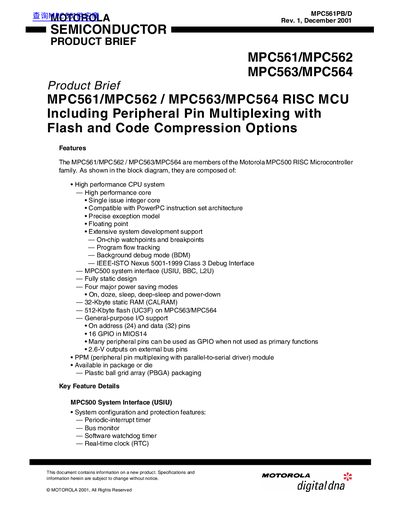

The MPC561/MPC562 / MPC563/MPC564 are members of the Motorola MPC500 RISC Microcontroller family, featuring high-performance CPU system, peripheral pin multiplexing, flash and code compression options.
The MPC561/MPC562 and MPC563/MPC564 are members of Motorola's MPC500 RISC microcontroller family. They combine a high‑performance PowerPC‑compatible core with extensive on‑chip peripherals such as GPIO, CAN controllers, QADC modules, TPU3 timers, and a peripheral pin‑multiplexing (PPM) system. Memory options include up to 32 KB of static RAM, up to 512 KB of flash (UC3F) on the MPC563/MPC564, and flexible chip‑select memory controllers.
Optional features add 56 MHz operation, code‑compression support, and additional flash capacity. The brief also provides ordering information for PBGA‑388 packages, temperature ranges, and part numbers, as well as references to related documentation and support contacts.
| Static RAM | 32 KB (CALRAM) |
|---|---|
| Flash Memory (MPC563/MPC564) | 512 KB (UC3F) |
| Address/Data Pins | 24 address pins, 32 data pins |
| Maximum Frequency | 56 MHz (optional, default 40 MHz) |
| CAN Controllers | Three TouCAN 2.0B modules |
The devices can operate up to 56 MHz, while the default frequency is 40 MHz.
The MPC563 provides a single 512‑KB flash (UC3F) module.
Three TouCAN 2.0B CAN controller modules are integrated.
