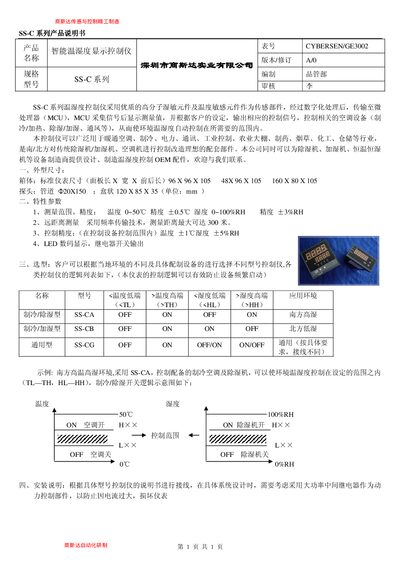

The Sunstar SS-C series manual describes the intelligent temperature and humidity display controller, its features, specifications, installation and operation.
The SS-C series intelligent temperature and humidity display controller is designed for HVAC, refrigeration, power, communications, industrial control, agricultural greenhouse, pharmaceutical, tobacco, chemical and storage applications. It digitizes sensor signals and uses an MCU to display values and output control signals for heating, cooling, humidifying or dehumidifying equipment.
Key specifications include a temperature range of 0‑50 °C (±0.5 °C accuracy), humidity range of 0‑100 %RH (±3 %RH accuracy), remote measurement up to 300 m, control accuracy of ±1 °C and ±5 %RH, LED digital display and relay output. The manual provides physical dimensions, model selection guidance and installation instructions. This manual is written in Chinese.
| Humidity range | 0~100 %RH |
|---|---|
| Remote measurement distance | Up to 300 m |
| Display type | LED digital display |
| Output type | Relay switch output |
The controller can transmit measurements up to 300 meters using frequency transmission technology.
The standard panel size is 96 mm × 96 mm × 105 mm; other sizes are 48 × 96 × 105 mm and 160 × 80 × 105 mm.
