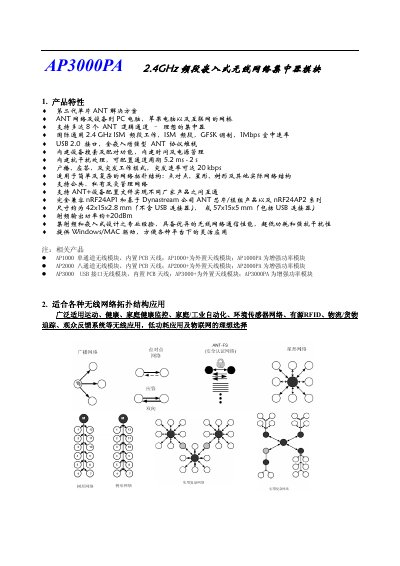

The SUNSTAR AP3000PA is a 2.4 GHz embedded wireless network concentrator module with ANT support, USB 2.0 interface and up to 8 logical channels.
The AP3000PA module operates in the 2.4 GHz ISM band with GFSK modulation at 1 Mbps. It features a USB 2.0 interface, built‑in device search and pairing, and supports up to eight ANT logical channels for various network topologies such as point‑to‑point, star, and tree.
Typical applications include sports and health monitoring, home/industrial automation, environmental sensor networks, RFID tracking, and audience feedback systems. The module provides Windows/Mac drivers and is compatible with nRF24AP1/2 series and Dynastream ANT chips. This manual is written in Chinese.
| VBUS Power Voltage | 4.0 V – 5.25 V |
|---|---|
| VDD Supply Voltage | 3.05 V – 3.5 V |
| Channel Closed Current | ~9.3 mA |
| TX Peak Current (at +20 dBm) | ~70 mA |
| RX Peak Current | ~22 mA |
| Suspend Current | ~0.5 mA |
| RF Output Power | ~+20 dBm |
| Dimensions (without USB connector) | 42 mm × 15 mm × 2.8 mm |
| Dimensions (with USB connector) | 57 mm × 15 mm × 5 mm |
It supports up to 8 ANT logical channels.
The module provides approximately +20 dBm RF output power.
The module uses a USB 2.0 interface.
Approximately 42 mm × 15 mm × 2.8 mm.
