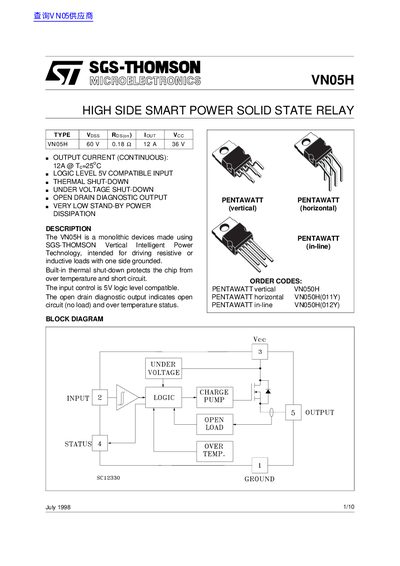

The VN05H is a monolithic devices made using SGS-THOMSON Vertical Intelligent Power Technology. It is intended for driving resistive or inductive loads with one side grounded. Built-in thermal shut-down protects the chip from over temperature and short circuit. The input control is 5V logic level compatible. The open drain diagnostic output indicates open circuit (no load) and over temperature status.
The VNO5H is a monolithic high‑side solid‑state relay designed for driving resistive or inductive loads with one side grounded. It features a 5 V logic‑level compatible input, built‑in thermal shut‑down, under‑voltage shut‑down, and an open‑drain diagnostic output that signals open‑circuit and over‑temperature conditions.
Electrical specifications include a continuous output current of 12 A at 25 °C, supply voltage ranges of 40 V (continuous) and 60 V (pulsed), reverse supply voltage of –4 V, and a power dissipation of 52 W at 25 °C. Thermal protection activates at 140 °C, with a junction‑case thermal resistance of 2.4 °C/W and a junction operating range from –40 °C to 150 °C.
| Continuous Output Current | 12 A |
|---|---|
| Logic Input Level | 5 V compatible |
| Supply Voltage (continuous) | 40 V |
| Supply Voltage (pulsed) | 60 V |
| Reverse Supply Voltage | -4 V |
| Power Dissipation (≤25 °C) | 52 W |
| Junction Temperature Range | -40 °C to 150 °C |
| Input Current | 10 mA |
| Thermal Resistance (J‑C) | 2.4 °C/W |
| Under‑Voltage Shut‑Down Level | 5.5 V |
The device can deliver up to 12 A continuous output current at 25 °C.
The relay accepts a 5 V logic‑level compatible input.
Thermal shut‑down occurs at 140 °C.
