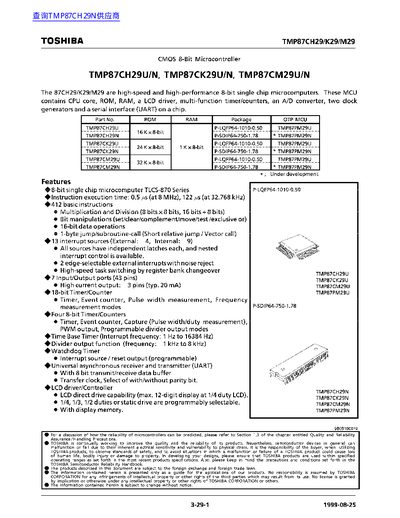

This manual provides detailed information on the Toshiba TMP87 series 8‑bit microcontrollers, including the TMP87CH29U/N, TMP87CK29U/N and TMP87CM29U/N. It covers features, pin assignments, block diagrams, operational description, and electrical characteristics.
The document includes specifications such as operating voltage ranges, current limits, clock options, and recommended oscillator conditions, as well as memory maps and programming details for developers integrating these MCUs into their designs.
| Operating voltage range | 2.7 V to 5.5 V |
|---|---|
| Number of interrupt sources | 13 (4 external, 9 internal) |
| Supply current (Normal mode, 8 MHz) | 10‑16 mA |
The devices operate from 2.7 V to 5.5 V.
It provides 13 interrupt sources: 4 external and 9 internal.
The MCU supports a high‑frequency clock up to 8 MHz and a low‑frequency clock of 32.768 kHz.
