The 2SA0886 (2SA886) is a silicon PNP epitaxial planar type transistor for low-frequency power amplification. It can be used with 2SC1847 as a complementary pair to achieve an output power of 4W. The TO-126B package requires no insulation plate for installation to the heat sink.
The 2SA0886 is a silicon PNP epitaxial planar transistor offered by Panasonic. It is supplied in a TO‑126B package and is intended for low‑frequency power amplification applications, often paired with the complementary 2SC1847 device.

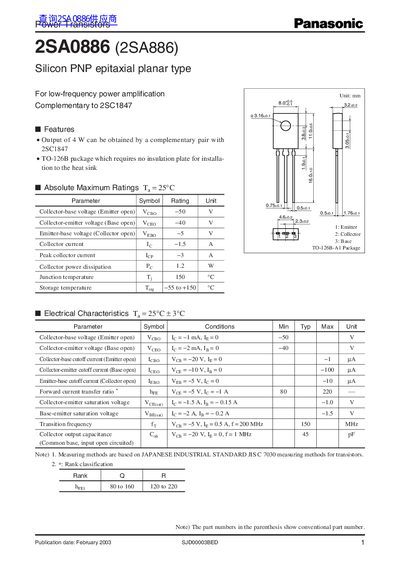

The datasheet lists absolute maximum ratings such as 50 V collector‑base voltage, 40 V collector‑emitter voltage, and a peak collector current of 1.5 A, as well as typical electrical characteristics and safe‑operation area curves. Legal and export notices are also included, indicating that the information is subject to Japanese export regulations and may be updated without notice.
| Package | TO‑126B |
|---|
It is supplied in a TO‑126B package.
