This document describes the features and characteristics of the V375A2C160A DC-DC converter from Vicor Corp. It includes information on input voltage range, output voltage, programmable output, regulation performance, efficiency, maximum operating temperature, etc. This converter is suitable for distributed power, offline systems using power PFC front-ends, electric vehicles, and other applications.

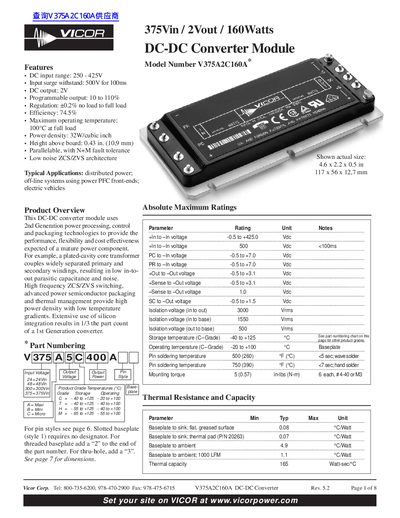

The V375A2C160A is a high‑density 375 Vin / 2 Vout DC‑DC converter delivering up to 160 W. It is intended for distributed power, off‑line systems with PFC front‑ends, and electric vehicle applications.
This handbook covers the module’s electrical and mechanical specifications, pin‑level control functions (PC, SC, PR), parallel operation, wiring diagrams, and mounting details, along with safety and regulatory information.
| Input voltage range | 250 V – 425 V |
|---|---|
| Output voltage | 2.00 V (typical) |
| Maximum output power | 160 W at 100 °C baseplate |
| Efficiency | ≈ 74.5 % |
| Maximum operating temperature | 100 °C at full load |
| Power density | 32 W per cubic inch |
| Weight | 7.3 oz (≈ 210 g) typical |
| Isolation voltage (in to out) | 3000 Vrms |
The module operates from 250 V to 425 V input.
It can deliver up to 160 W when the baseplate is at 100 °C.
The module may be disabled by pulling the PC pin below 2.3 V with respect to the input.
Typical efficiency is about 74.5 % under nominal conditions.
