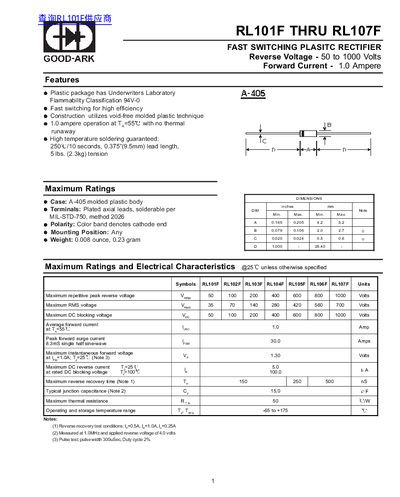

The RL101F‑RL107F series are fast‑switching plastic rectifiers offered by GOOD‑ARK. They feature a void‑free molded plastic package, UL‑A‑405 flammability rating and high‑temperature soldering capability.
The datasheet lists maximum repetitive peak reverse voltage from 50 V (RL101F) up to 1000 V (RL107F), average forward current of 1 A at 55 °C, peak forward surge current of 30 A, and operating temperature range from –65 °C to +175 °C. Electrical characteristics, characteristic curves and mechanical dimensions are also provided.
| Maximum repetitive peak reverse voltage | 50 V – 1000 V (RL101F‑RL107F) |
|---|---|
| Maximum RMS voltage | 35 V – 700 V (RL101F‑RL107F) |
| Maximum DC blocking voltage | 50 V – 1000 V (RL101F‑RL107F) |
| Average forward current at 55 °C | 1.0 A |
| Peak forward surge current | 30.0 A |
| Maximum instantaneous forward voltage (1 A, 25 °C) | 1.30 V |
| Maximum DC reverse current at 25 °C | 5.0 µA |
| Maximum reverse recovery time | 150 ns – 500 ns |
| Typical junction capacitance | 15.0 pF |
| Operating temperature range | -65 °C to +175 °C |
The rectifier is rated for an average forward current of 1.0 A at 55 °C.
