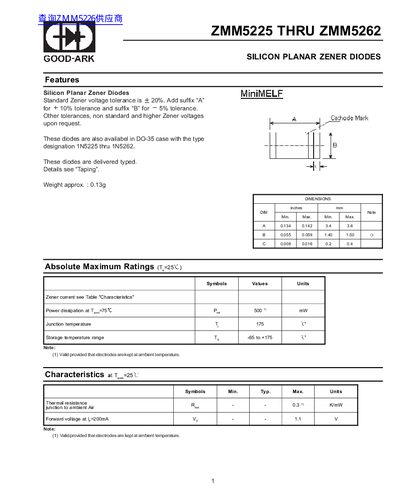

This document is a technical datasheet for the GOOD-ARK series of Silicon Planar Zener Diodes housed in MiniMELF packages. The product range includes models designated from ZMM5225 to ZMM5262, which are also available in DO-35 cases under the 1N5225 through 1N5262 designations.
The datasheet provides absolute maximum ratings and electrical characteristics at a junction temperature of 25°C. Key specifications include power dissipation up to 500 mW, a standard Zener voltage tolerance of +20% (with options for tighter tolerances), and detailed tables listing nominal test currents, maximum zener impedance, and reverse leakage current for each model in the series.
| Package Type | MiniMELF (also available in DO-35) |
|---|---|
| Standard Zener Voltage Tolerance | + 20% |
| Junction Temperature | -65 to +175 °C |
The standard Zener voltage tolerance is +20%.
The maximum power dissipation is 500 mW.
Dimension A ranges from a minimum of 0.134 to a maximum of 0.142 inches.
