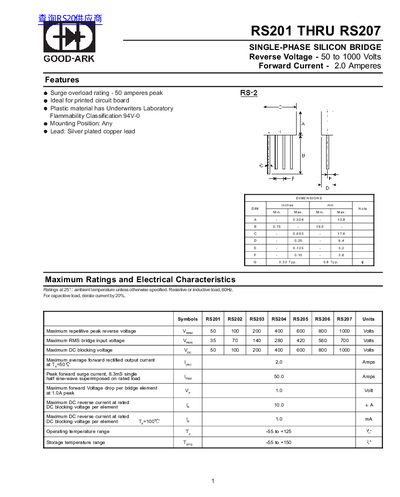

This document provides technical specifications for the GOOD-ARK RS201 through RS207 series of single-phase silicon bridges. The devices feature a reverse voltage range from 50 to 1000 volts and a forward current rating of 2.0 amperes.
Key features include a surge overload rating of 50 amperes peak, silver-plated copper leads, and plastic material with Underwriters Laboratory Flammability Classification 94-0. The datasheet details maximum ratings such as operating temperature ranges from -55°C to +125°C and includes derating curves for output rectified current based on ambient temperature.
| Reverse Voltage Range | 50 to 1000 Volts |
|---|---|
| Forward Current | 2.0 Amperes |
| Surge Overload Rating | 50 amperes peak |
| Operating Temperature Range | -55 to +125 C |
| Lead Material | Silver plated copper lead |
The maximum average forward rectified output current at Tj=50°C is 2.0 Amps.
The peak forward surge current for a single half sine-wave superimposed on rated load is 50.0 Amps.
The maximum DC reverse current at rated DC blocking voltage per element is 40.0 A.
