The document describes a voltage suppressor for LAN protection applications, which is optimized for ESD protection and EFT protection of data lines. The product features a low profile package with built-in strain relief for surface mounted applications. It has a glass passivated junction, low incremental surge resistance, and excellent clamping capability. The product also has a 400W peak pulse power capability, very fast response time, and high temperature soldering guarantee.

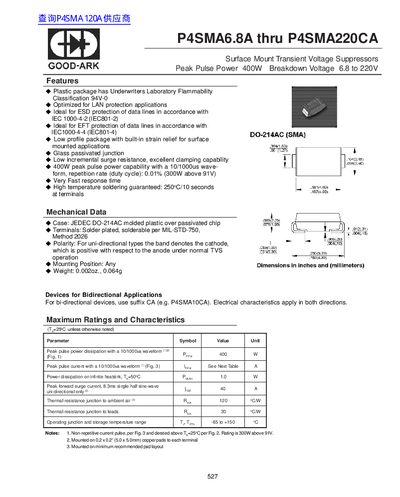

This document provides technical specifications for the GOOD-ARK P4SMA6.8A through P4SMA220CA series of Surface Mount Transient Voltage Suppressors (TVS). These devices are designed with a plastic package optimized for LAN protection applications and ESD/EFT protection in accordance with IEC standards.
| Peak Pulse Power Dissipation | 400W (10/1000us waveform) |
|---|---|
| Breakdown Voltage Range | 6.8V to 220V |
| Package Type | JEDEC DO-214AC molded plastic |
| Operating Temperature Range | -65 to +150 °C |
The device has a 400W peak pulse power capability with a 10/1000us waveform.
Yes, the package is optimized specifically for LAN protection applications.
