The document contains information about ZPD10 suppliers and describes the features and characteristics of the ZPD10 product.

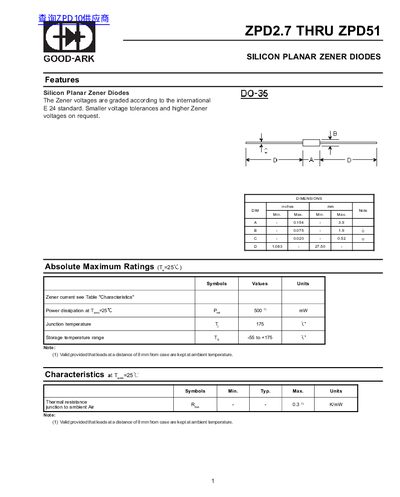

This document is a technical datasheet for the GOOD-ARK ZPD2.7 through ZPD51 series of Silicon Planar Zener Diodes. The components are graded according to the international E 24 standard with specific voltage tolerances.
The datasheet provides absolute maximum ratings, including power dissipation up to 500 mW at a junction temperature of 175°C and storage temperatures from -55°C to +175°C. It lists detailed electrical characteristics for various Zener voltages ranging from 2.7V to 51V, along with thermal resistance values.
| Product Type | Silicon Planar Zener Diodes |
|---|---|
| Power Dissipation (Tj=25°C) | 500 mW |
| Junction Temperature | -65 to +175 C |
| Storage Temperature Range | -55 to +175 c |
The Zener voltages are graded according to the international E 24 standard.
The maximum power dissipation is 500 mW when the junction temperature is 25°C.
