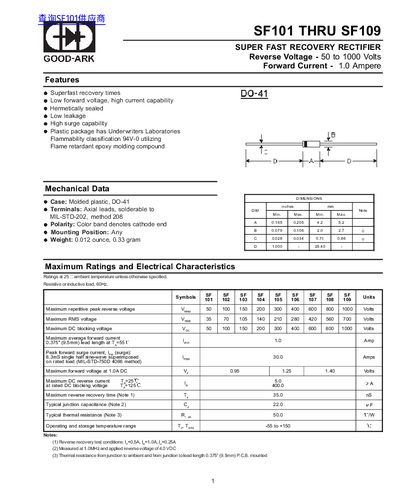

This document provides technical specifications for the GOOD-ARK SF101 through SF109 series of Super Fast Recovery Rectifiers. The devices are hermetically sealed with plastic packages featuring Underwriters Laboratories Flammability classification 94V-0.
The datasheet details maximum ratings including reverse voltage from 50 to 1000 Volts and forward current up to 1.0 Ampere. It also includes electrical characteristics such as reverse recovery time, junction capacitance, and thermal resistance, along with typical performance curves.
| Reverse Voltage Range | 50 to 1000 Volts |
|---|---|
| Forward Current | 1.0 Ampere |
| Package Type | DO-41 |
| Flammability Classification | 94V-0 |
The maximum average forward current is rated at 1.0 ampere.
A single half sine-wave surge must not exceed 8.3 milliseconds.
The maximum reverse recovery time is 35.0 nanoseconds.
