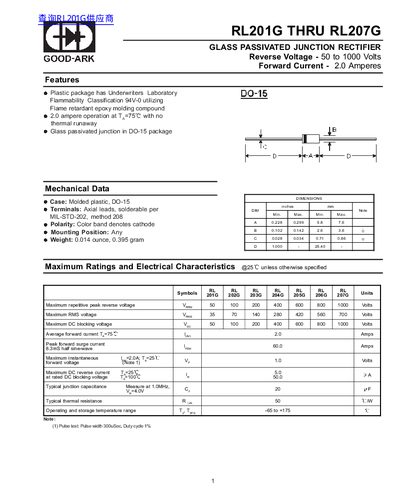

The RL201G‑RL207G series are glass‑passivated junction rectifiers housed in a molded plastic DO‑15 package. They feature UL‑94‑V0 flammability classification, 2 A forward current operation at 75 °C without thermal runaway, and axial lead terminals for easy soldering.
The datasheet lists maximum repetitive peak reverse voltage from 50 V to 1000 V, average forward current of 2.0 A at 75 °C, peak forward surge current of 60 A, and a maximum DC reverse current of 5 µA at 25 °C. Mechanical data include a weight of 0.014 oz (0.395 g) and an operating temperature range of –65 °C to +175 °C. Characteristic curves for forward and reverse behavior are provided.
| Package type | Molded plastic DO‑15 |
|---|---|
| Terminal type | Axial leads, solderable |
| Weight | 0.014 oz (0.395 g) |
It is housed in a molded plastic DO‑15 package.
