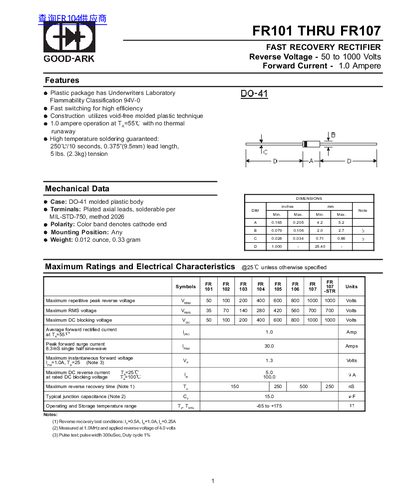

This document provides a technical overview of the GOOD-ARK FR101 through FR107 series of Fast Recovery Rectifiers. The components are designed with plastic packages featuring Underwriters Laboratory Flammability Classification 94V-0 and utilize void-free molded plastic techniques for construction.
The datasheet details maximum ratings, including reverse voltages ranging from 50 to 1000 Volts and a forward current of 1.0 Ampere. It also includes electrical characteristics such as peak forward surge current, reverse recovery time, and operating temperature ranges, along with typical performance curves.
| Forward Current | 1.0 Ampere |
|---|---|
| Reverse Voltage Range | 50 to 1000 Volts |
| Package Type | DO-41 molded plastic body |
| Operating Temperature Range | -65 to +175 C |
| Peak Forward Surge Current | 30.0 Amps |
The plastic package has Underwriters Laboratory Flammability Classification 94V-0.
The maximum reverse recovery time at T,=25°C ranges from 250 to 500 nanoseconds depending on the model.
