The document describes a product with unique features and characteristics. The product offers high performance, reliability, innovative design, and versatility.

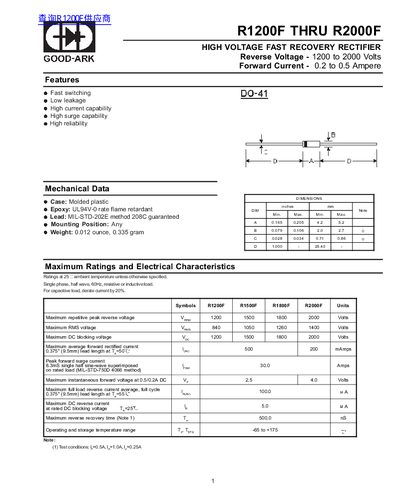

This document provides technical specifications for the GOOD-ARK High Voltage Fast Recovery Rectifier series, covering models from R1200F through R2000F. Key features include fast switching speed, low leakage current, and high surge capability suitable for single-phase half-wave applications.
The datasheet details maximum ratings such as reverse voltage (up to 2000 Volts) and forward current capabilities, along with operating temperature ranges from -65°C to +175°C. It also includes mechanical data for the DO-41 package and graphical curves illustrating forward current derating against ambient temperature.
| Operating Temperature Range | -65 to +175 C |
|---|---|
| Maximum Reverse Recovery Time | 500.0 ns |
| Case Material | Molded plastic |
For capacitive load applications, the current must be derated by 20%.
The device operates and can be stored between -65°C and +175°C.
The maximum peak forward surge current is 30.0 Amps.
You must derate the current by 20% for capacitive load applications.
