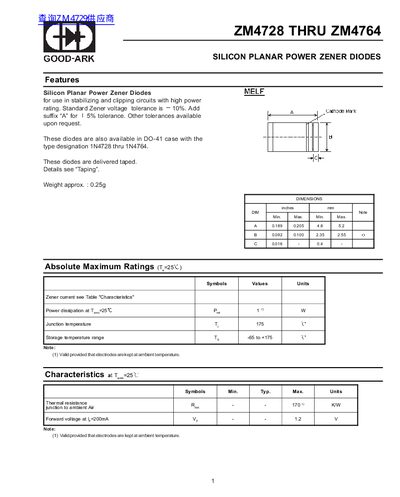

This document provides specifications for a series of Silicon Planar Power Zener Diodes manufactured by GOOD-ARK. The devices are designed for use in stabilizing and clipping circuits with high power ratings, featuring a standard Zener voltage tolerance of + 10% (with an optional 'A' suffix for + 5%). They are available in MELF packages or DO-41 cases designated as 1N4728 through 1N4764.
| Product Type | Silicon Planar Power Zener Diodes MELF |
|---|---|
| Standard Tolerance | + 10% |
| High Power Rating Option | Available with suffix 'A' |
| Alternative Case Type | DO-41 |
| Power Dissipation (Tj=25°C) | 17 W |
| Junction Temperature Max | 175 C |
| Storage Temperature Range | -65 to +175 C |
The standard tolerance is +10%, though a suffix 'A' can be added for +5%.
The diodes have a maximum power dissipation of 17 W when the junction temperature is 25°C.
Each diode weighs approximately 0.25g.
