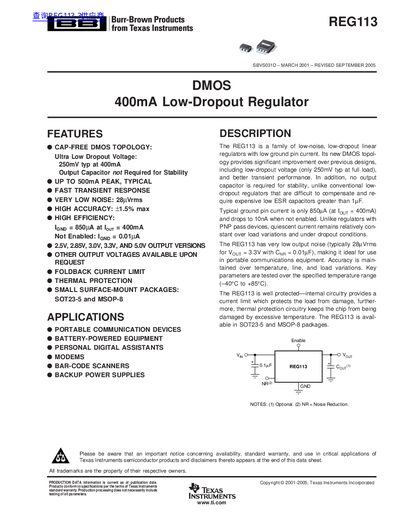

REG113 is a family of low-noise, low-dropout linear regulators with low ground pin current. Its new DMOS topology provides significant improvement over previous designs, including low-dropout voltage (only 250mV typ at full load), and better transient performance. In addition, no output capacitor is required to provide stability for the regulator, simplifying the design.
The REG113 series offers ultra‑low dropout voltage (250 mV typ at 400 mA) and very low output noise (28 µV rms). It is available in SOT‑23‑5 and MSOP‑8 packages and supports fixed output voltages from 2.5 V to 5.0 V, plus an adjustable version.
All versions include internal current‑limit, foldback protection and thermal shutdown. The device does not require an output capacitor for stability, though a small capacitor can improve transient response. Typical ground‑pin current is 850 µA at full load and drops to 10 nA when disabled.
| Typical dropout voltage | 250 mV at 400 mA |
|---|---|
| Maximum output current | 500 mA (typical) |
| Output voltage options | 2.5 V, 2.85 V, 3.0 V, 3.3 V, 5.0 V (fixed) and adjustable |
| Output noise | 28 µV rms |
| Ground pin current (disabled) | ≈10 nA |
| Package types | SOT‑23‑5 and MSOP‑8 |
| Operating temperature range | -40 °C to +85 °C |
The typical dropout voltage is 250 mV at a full‑load current of 400 mA.
No, the REG113 does not require an output capacitor for stability, though one can improve transient response.
The device can deliver up to 500 mA peak current, with a typical limit of 500 mA.
Fixed output versions are available at 2.5 V, 2.85 V, 3.0 V, 3.3 V and 5.0 V, plus an adjustable version.
