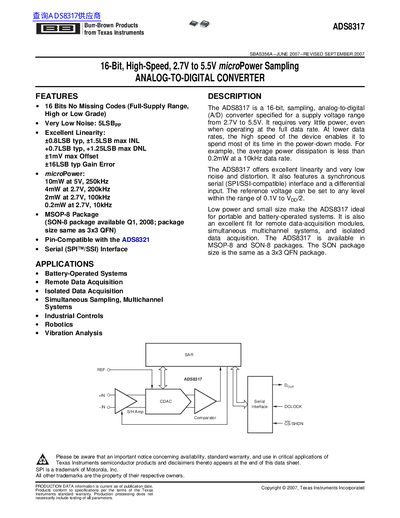

The ADS8317 is a 16-bit, high-speed, low-power analog-to-digital converter (ADC) specified for a supply voltage range from 2.7V to 5.5V. It requires very little power, even when operating at the full data rate. The ADS8317 offers excellent linearity and very low noise and distortion. It also features a synchronous serial interface and a differential input. The reference voltage can be set to any level within the range of 0.1V to VDD/2.
The ADS8317 is a 16-bit sampling A/D converter specified for a supply voltage range from 2.7V to 5.5V. It features very low noise (5LSBpp) and excellent linearity, making it suitable for battery-operated systems and remote data acquisition.
| Resolution | 16 Bits |
|---|---|
| Supply Voltage Range | 2.7V to 5.5V |
| No Missing Codes | 16 Bits |
| Integral Linearity Error (Typ) | +0.8LSB |
| Power Dissipation (Max at 5V/250kHz) | 10mW |
The average power dissipation is less than 0.2mW when operating at a 10kHz data rate.
