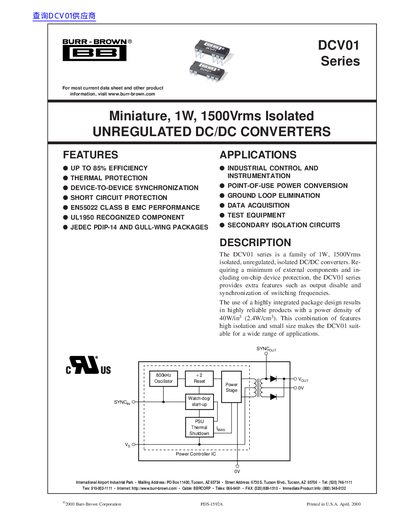

The DCV01 series is a family of 1W, 1500Vrms isolated, unregulated, isolated DC/DC converters. The series products feature high power density (40W/in3), high reliability, high isolation and small size, making them suitable for a wide range of applications such as industrial control and instrumentation, data acquisition, test equipment, secondary isolation circuits.
The DCV01 series is a family of miniature, 1W, 1500Vrms isolated, unregulated DC/DC converters designed for industrial control and instrumentation applications. These devices require a minimum of external components and include on-chip protection features such as thermal shutdown and short circuit protection.
| Power Output | 0.97 W (100% Full Load) |
|---|---|
| Isolation Voltage | 1500 Vrms |
| Operating Temperature Range | -40°C to +85°C |
| Oscillator Frequency | 800 kHz |
| Thermal Shutdown Temperature | 150°C |
The converters achieve up to 85% efficiency.
The devices are available in PDIP-14 and Gull-Wing packages.
