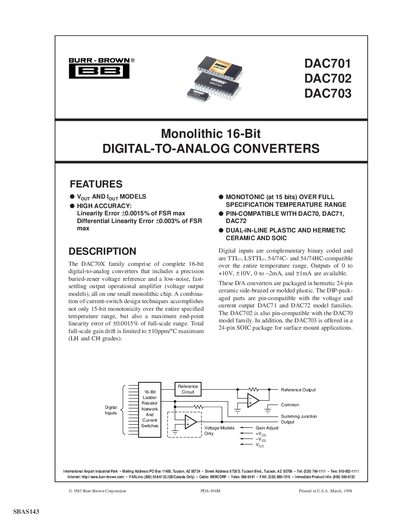

The DAC701, 702, 703 series are 16-bit precision, high-performance digital-to-analog converters with an integrated voltage reference and low-noise, fast output operational amplifier, providing up to 16-bit single-ended or bipolar output, power supply voltage range from -5V to +15V, and operating temperature range from -40℃ to +85℃.
The DAC70X family comprises complete 16-bit digital-to-analog converters that include a precision buried-zener voltage reference and a low-noise, fast-settling output operational amplifier on one small monolithic chip. The devices offer high linearity error of +0.0015% of full-scale range (FSR) maximum for LH and CH grades.
| Resolution | 16 Bits |
|---|---|
| Linearity Error (LH/CH) | +0.0015% of FSR max |
| Differential Linearity Error (LH/CH) | +0.003% of FSR max |
| Monotonicity | 15 bits over full specification temperature range |
| Total Full Scale Drift (LH/CH) | +10ppm/°C maximum |
| Operating Temperature (B, C Grades) | -25°C to +85°C |
The maximum end-point linearity error is +0.0015% of full-scale range.
The devices comprise complete 16-bit digital-to-analog converters.
