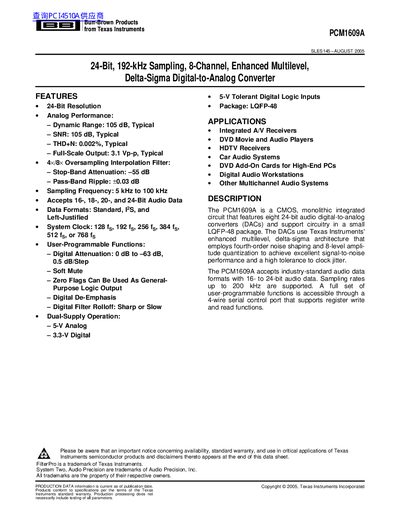

The PCM1609A is a 8-channel 24-bit audio digital-to-analog converter (DAC) produced by Texas Instruments. It uses an enhanced multilevel, delta-sigma architecture with fourth-order noise shaping and 8-level amplitude quantization to achieve excellent signal-to-noise performance and a high tolerance to clock jitter.
The PCM1609A is a CMOS monolithic integrated circuit featuring eight 24-bit audio digital-to-analog converters (DACs) and support circuitry in an LQFP-48 package. It utilizes Texas Instruments' enhanced multilevel, delta-sigma architecture employing fourth-order noise shaping and 8-level amplitude quantization to achieve excellent signal-to-noise performance.
| Resolution | 24 Bits |
|---|---|
| Sampling Frequency | 5 kHz to 200 kHz |
| System Clock Frequency | 8.192 MHz to 36.864 MHz |
| Dynamic Range (Typical) | 105 dB |
| Signal-to-Noise Ratio (Typical) | 105 dB |
| Total Harmonic Distortion + Noise (Typical) | 0.002% |
| Full-Scale Output | 3.1 Vp-p |
| Analog Supply Voltage | 4.5 V to 5.5 V |
| Digital Supply Voltage | 3 V to 3.6 V |
The device comes in an LQFP-48 package.
Yes, it accepts 16-, 18-, 20-, and 24-Bit Audio Data.
The recommended operating free-air temperature range is -25°C to +85°C.
