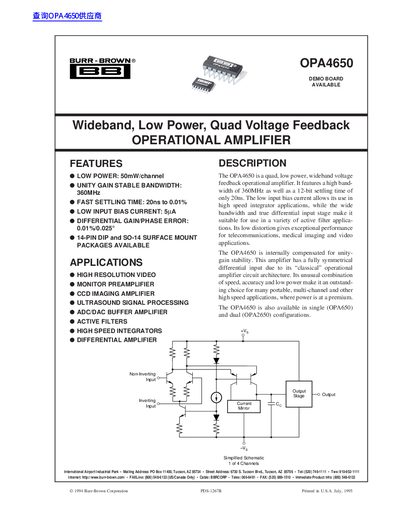

The OPA4650 is a quad, low power, wideband voltage feedback operational amplifier. It features a high bandwidth of 360MHz as well as a 12-bit settling time of only 20ns. The low input bias current allows its use in high-speed integrator applications, while the wide bandwidth and true differential input stage make it suitable for use in a variety of active filter applications. Its low distortion gives exceptional performance for telecommunications, medical imaging and video applications. The OPA4650 is internally compensated for unity-gain stability. This amplifier has a fully symmetrical differential input due to its “classical” operational amplifier circuit architecture. Its unusual combination of speed, accuracy and low power make it an outstanding choice for many portable, multi-channel and other high-speed applications, where power is at a premium.
The OPA4650 is a quad, low power, wideband voltage feedback operational amplifier designed for high-speed applications where power efficiency is critical. It features a unity gain stable bandwidth of 360MHz and a fast settling time of 20ns to 0.01%. The device includes a fully symmetrical differential input stage and is internally compensated for unity-gain stability.
| Settling Time to 0.01% | 20 ns |
|---|---|
| Input Bias Current | 5 nA |
| Operating Voltage Range | +4.5 to +5.5 V |
| Temperature Range (Industrial) | -40°C to +85°C |
The amplifier consumes a minimum of 50mW per channel.
It takes a minimum of 20ns to settle from a step input to 0.01%.
