IMX9 is a dual NPN transistor from ROHM. Its package is SMT6 and its rated power is 300mW (each element not exceeding 200mW). The maximum collector-emitter voltage is 20V, the maximum collector-base voltage is 25V, the maximum emitter-base voltage is 12V, the maximum collector current is 500mA, the junction temperature is 150℃ and the storage temperature is -55~+150℃.
The IMX9 is a general‑purpose isolated dual NPN transistor offered by ROHM. It features two 2SD2114K chips in a compact SMT6 package and can be mounted with an SMT3 automatic mounting machine, reducing interference, cost, and board area.

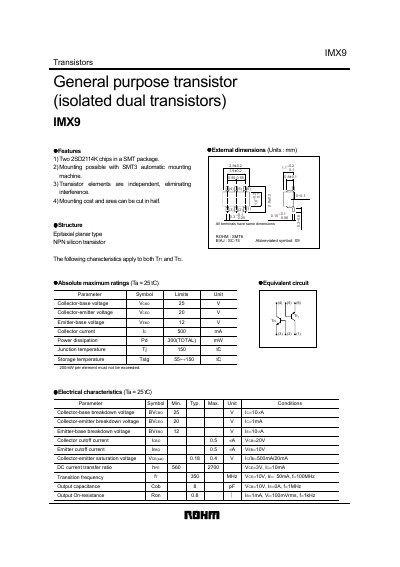

The datasheet provides absolute maximum ratings, electrical characteristics, packaging details, and characteristic curves. It also includes application notes and legal disclaimer information for proper use in electronic equipment.
| Package type | SMT6 |
|---|---|
| Collector‑base voltage (VCBO) | 25 V |
| Collector‑emitter voltage (VCEO) | 20 V |
| Emitter‑base voltage (VEBO) | 12 V |
| Collector current (IC) | 500 mA |
| Power dissipation per element | 200 mW |
| Junction temperature (Tj) | 150 °C |
| Mounting method | SMT3 automatic mounting machine |
The IMX9 is supplied in an SMT6 surface‑mount package.
The maximum collector‑emitter voltage is 20 V.
The device can handle up to 500 mA of collector current.
Yes, it can be mounted using an SMT3 automatic mounting machine.
