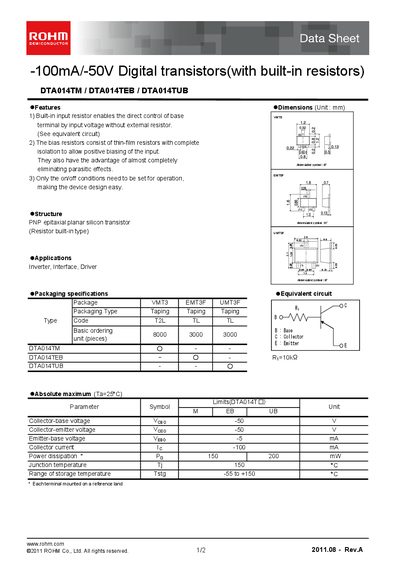

DTA014TM/DTA014TEB/DTA014TUB is a digital transistor produced by ROHM company, which has a built-in resistor and can directly control the base terminal without an external resistor. The transistor adopts PNP epitaxial planar silicon transistor (resistor built-in type) structure, which can be applied to inverters, interfaces, drivers and other fields.
The DTA014TM is a PNP epitaxial planar silicon transistor with a built‑in input resistor, allowing direct voltage control of the base terminal without external components. It is intended for use in inverters, interfaces, and driver circuits.
Key features include thin‑film bias resistors for positive biasing, simplified on/off operation, and packaging options such as T2L and TL taping. The sheet lists absolute maximum ratings, electrical characteristics, and typical application circuits.
| Collector‑Base voltage (V CBO) | -50 V |
|---|---|
| Collector‑Emitter voltage (V CEO) | -50 V |
| Emitter‑Base voltage (V EBO) | 5 V |
| Collector current (I C) | -100 mA |
| Power dissipation (P D) | 150‑200 mW |
| Junction temperature (T J) | 150 °C |
| Storage temperature range | -55 °C to +150 °C |
| Transition frequency (f T) | 250 MHz |
| Input resistance (R i) | 7‑13 kΩ |
| DC current gain (h FE) | 100‑600 |
The maximum collector current is -100 mA.
It supports a collector‑base breakdown voltage of -50 V, a collector‑emitter breakdown voltage of -50 V, and an emitter‑base breakdown voltage of 5 V.
The device is suitable for inverter, interface, and driver applications.
Packaging types include T2L, TL, and TL 5 taping formats.
