The document describes the features and characteristics of the product, including built-in bias resistors, thin-film resistors, easy device design, and high mounting densities.

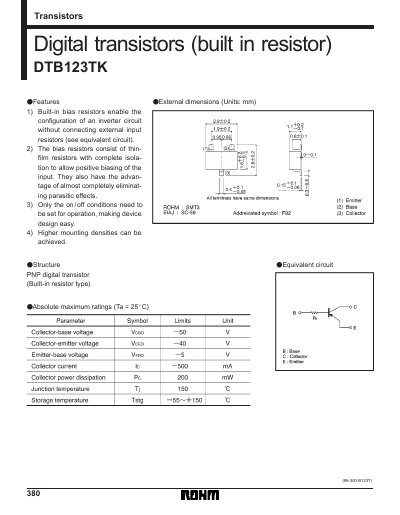

The DTB123TK is a PNP digital transistor with built‑in thin‑film bias resistors, allowing inverter circuits without external resistors. Its design enables higher mounting density and simplifies device design.
The document lists external dimensions, absolute maximum ratings, electrical characteristics at 25 °C, and packaging specifications, and includes application circuit examples and usage cautions for safety‑critical equipment. This manual is written in Chinese.
| External dimensions | 380 mm |
|---|---|
| Transistor type | PNP digital transistor (built‑in resistor type) |
It is a PNP digital transistor with a built‑in resistor.
The datasheet includes packaging specifications for the device.
