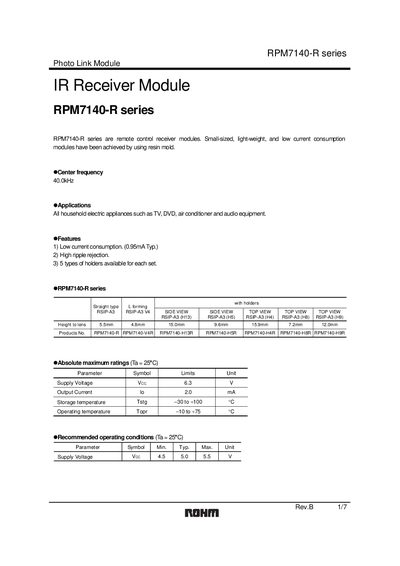

RPM7140-R series photo link modules are remote control receiver modules that have been achieved by using resin mold. They are small-sized, light-weight, and low current consumption modules. The center frequency is 40.0kHz and they are suitable for TV, DVD, air conditioner and audio equipment.
The RPM7140-H13R is a small, lightweight IR receiver module designed for household electric appliances such as TVs, DVD players, air conditioners and audio equipment. It operates at a 40 kHz carrier frequency and offers low current consumption (0.95 mA typical) with high ripple rejection.
This manual includes electrical and optical characteristics, recommended operating conditions, pin descriptions, mounting instructions, dimensions, and safety notes. It also provides measurement methods, EMI shielding recommendations, and legal notices for the product.
| Supply Voltage (typical) | 5.0 V |
|---|---|
| Current Consumption (typical) | 0.95 mA |
| Storage Temperature | -30 °C to +100 °C |
| Operating Temperature | -10 °C to +75 °C |
| Center Frequency | 40.0 kHz |
| Height to Lens (H13 version) | 5.5 mm |
The typical supply voltage is 5.0 V.
It normally consumes about 0.95 mA.
Use a shield case or shield plate that is grounded, and connect the holder to GND.
