The MCR10 is a low-ohm thick-film chip resistor produced by ROHM. The rated power is 1/4W. The features are high accuracy, high temperature resistance, and long life.
The MCR10EZH is a 1/4 W low‑ohmic thick‑film chip resistor from ROHM, featuring a ruthenium‑oxide dielectric for high reliability and solder‑resistant electrodes. It complies with ISO9001 and ISO/TS16949 certifications and is designed for use in a wide range of electronic equipment.

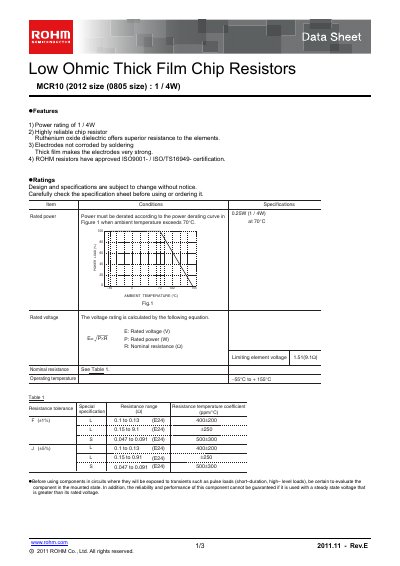

The datasheet lists electrical ratings, temperature limits, resistance tolerance, physical dimensions (0805/2012 size), and packaging options such as JEITA‑compliant reels. It also includes test conditions, soldering guidelines, and durability specifications for various environmental stresses.
| Power rating | 0.25 W (1/4 W) |
|---|---|
| Operating temperature range | 55 °C to +155 °C |
| Nominal resistance range (class F) | 0.1 Ω to 9.19 Ω |
| Package size | 0805 (2012 size) |
The resistor is rated at 1/4 W (0.25 W).
It can operate from 55 °C up to +155 °C.
