This document is about the datasheet of ROHM LTR10 (2012 size : 1 / 2W) high power low ohmic chip resistors. It has improved welding strength, increased surge-resistance, high-power tolerance and other features. Suitable for automotive, industrial and power supply applications.

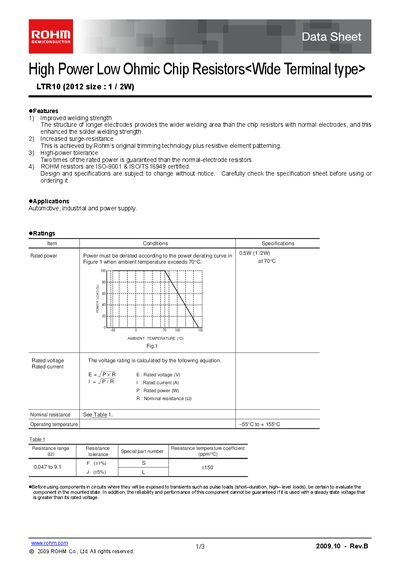

This datasheet describes the LTR10 series chip resistor with a wide‑terminal type and a 1/2 W power rating. It highlights improved welding strength, increased surge‑resistance, and a high‑power tolerance that is twice that of normal‑electrode resistors.
Technical details include operating temperature range, rated voltage calculation, resistance values, tolerance codes, packaging options and recommended soldering conditions. The document also contains a notice on usage limits and export requirements.
| Operating temperature range | -55°C to +155°C |
|---|---|
| Nominal resistance range | 0.047 Ω to 9.1 Ω |
The resistor can operate from –55 °C up to +155 °C.
