LTR10 series is a high power semiconductor resistor produced by Rohm. It has the characteristics of high welding strength, strong surge resistance and high power tolerance. It is suitable for automotive, industrial and power supply fields.

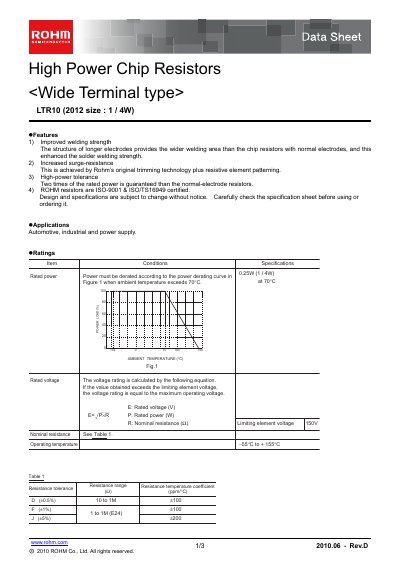

The LTR10EZPJ is a high‑power chip resistor with a wide‑terminal design that improves welding strength and surge resistance. It offers twice the rated power of normal‑electrode resistors and complies with ISO‑9001 and ISO/TS16949 standards.
Typical applications include automotive, industrial, and power‑supply circuits. The part is available in 0805 (2012) size, with a rated power of 0.25 W, rated voltage up to 150 V (200 V overload), and operates from –55 °C to +155 °C. Packaging options are standard reels (180 mm) and paper tape (4 mm pitch).
| Rated power | 0.25 W (1/4 W) |
|---|---|
| Rated voltage | 150 V |
| Maximum overload voltage | 200 V |
| Operating temperature range | -55 °C to +155 °C |
| Resistance range | 10 Ω to 1 MΩ |
| Package size | 0805 (2012) |
| Packaging | Reel, 180 mm |
It is rated at 0.25 W (1/4 W).
The resistor operates from –55 °C to +155 °C.
The resistor can tolerate an overload voltage of up to 200 V.
Standard reel (180 mm) and paper tape (4 mm pitch) are available.
