This document describes the features and characteristics of the conductive polymer chip capacitors produced by ROHM Co., Ltd., including the use of conductive polymer as the cathode material, ultra-low ESR, small size but large capacitance, etc. It also provides detailed information on the dimensions, rated voltage, capacitance tolerance, etc. of this series of products.

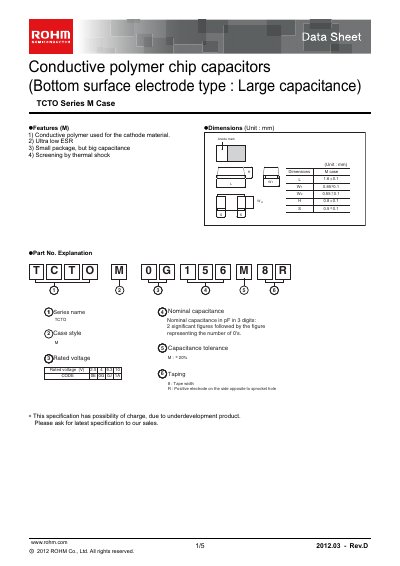

The TCTO Series M Case is a bottom‑surface‑electrode conductive polymer chip capacitor offered by ROHM. It features ultra‑low ESR, high capacitance in a small package, and a conductive polymer cathode material.
The datasheet lists electrical ratings (2.5 V, 4 V, 6.3 V, 10 V), capacitance tolerance (+20 %), operating temperature range (‑55 °C to +105 °C), and detailed mechanical dimensions. Packaging information, test conditions, and handling notes are also included.
| Rated voltage (VDC) | 2.5 V, 4 V, 6.3 V, 10 V |
|---|---|
| Operating temperature range | -55 °C to +105 °C |
| Nominal capacitance code | Three‑digit code (e.g., 105 = 1.0 µF) |
The capacitors are rated for 2.5 V, 4 V, 6.3 V, and 10 V.
