This capacitor uses conductive polymer as cathode material, and has ultra low ESR, small package and big capacitance.

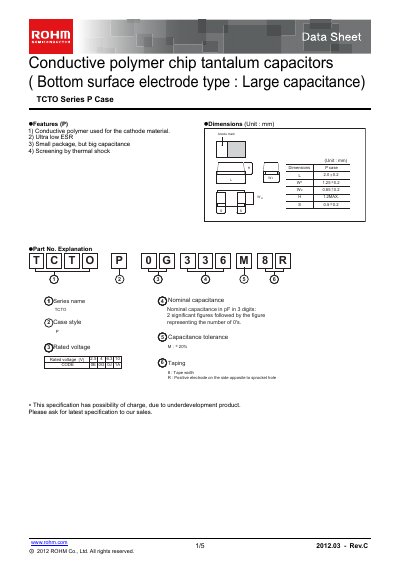

The TCTO Series P Case capacitors are conductive polymer chip tantalum capacitors with a bottom‑surface electrode, offering ultra‑low ESR and high capacitance in a small package. The sheet provides dimensions, part numbers, and marking conventions for proper identification.
Key specifications include rated voltages of 2.5 V, 4 V, 6.3 V and 10 V, a capacitance tolerance of ±20 %, operating temperature from –55 °C to +105 °C, and detailed ESR values for each capacitance value. Test conditions and packaging details are also described.
| Rated voltage (V) | 2.5, 4, 6.3, 10 |
|---|---|
| Operating temperature range | -55°C to +105°C |
| Package length (L) | 20.0 mm |
The capacitors operate from –55 °C to +105 °C.
Rated voltages are 2.5 V, 4 V, 6.3 V and 10 V.
Polarity is shown by a bar on the anode side.
