This document introduces the features and dimensions of ROHM's conductive polymer chip capacitors, and provides partial number explanations and rated tables.

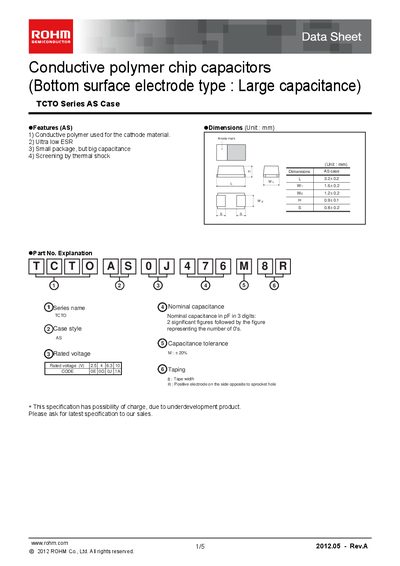

The TCTO series AS case data sheet provides specifications for ROHM's conductive polymer chip capacitors, highlighting ultra‑low ESR, high capacitance in a small package, and a range of rated voltages.
Key information includes dimensions, electrical characteristics, test conditions, packaging details, and handling notes, all intended for designers of electronic equipment such as audio‑visual, office‑automation, and communication devices.
| Capacitor type | Conductive polymer chip capacitor (bottom surface electrode) |
|---|---|
| ESR | Ultra low |
| Rated voltage options | 2.5 V, 4 V, 6.3 V, 10 V |
| Operating temperature range | -55 °C to +105 °C |
The capacitors are offered with rated voltages of 2.5 V, 4 V, 6.3 V, and 10 V.
The devices operate from –55 °C up to +105 °C.
