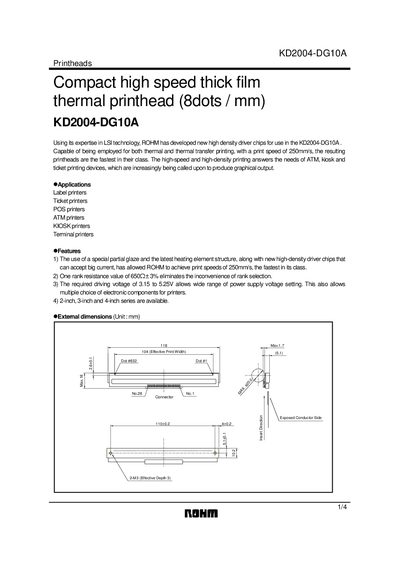

KD2004-DG10A is a compact high speed thick film thermal printhead with 8dots / mm print resolution. The print speed is 250mm/s, which is the fastest in its class. It can be used for both thermal and thermal transfer printing. The products are suitable for label printers, ticket printers, POS printers, ATM printers, KIOSK printers and terminal printers.
This document describes the KD2004-DG10A thermal printhead, a compact high‑speed thick‑film device capable of 250 mm/s print speed. It outlines applications such as label, ticket, POS, ATM, kiosk and terminal printers, and lists key features like a 650 Ω ±3% resistance and a driving voltage of 3.15‑5.25 V.
Technical sections include external dimensions, equivalent circuit diagrams, pin assignments, timing charts, and detailed electrical characteristics. An appendix contains legal and export‑control notices.
| Effective printing width | 104 mm |
|---|---|
| Dot pitch | 0.125 mm |
| Total dot number | 832 dots |
| Average resistance value | 650 Ω |
| Applied voltage | 24 V |
| Applied power | 0.74 W |
| Print cycle | 0.5 ms |
| Pulse width | 0.20 ms |
| Maximum dots energized simultaneously | 448 dots |
| Maximum clock frequency | 16 MHz |
| Maximum roller diameter | 20.0 mm |
| Running life / pulse life | 50/5×10⁷ km/pulses |
| Operating temperature | 5 to 45 °C |
The KD2004-DG10A can print at a speed of 250 mm/s.
It operates with a driving voltage of 3.15 to 5.25 V.
The product is offered in 2‑inch, 3‑inch and 4‑inch series.
The dot pitch is 0.125 mm.
