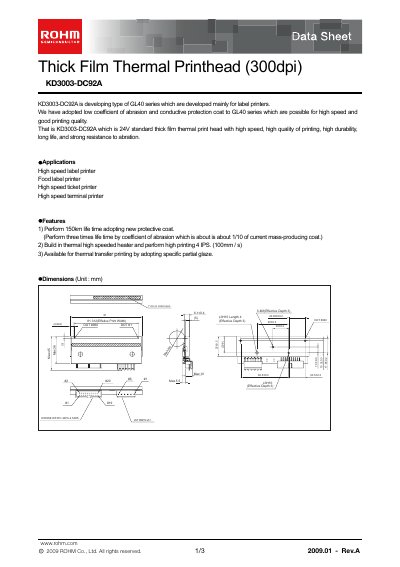

KD3003-DC92A is a new type of thermal printhead in the GL40 series, mainly developed for label printers. It adopts a low coefficient of abrasion and a conductive protection coat, enabling high speed and good printing quality. It features high speed, high quality printing, high durability, long life, and strong resistance to abrasion.
The KD3003-DC92A is a 24 V thick‑film thermal printhead designed for high‑speed label, ticket, and terminal printers. It features a low‑abrasion protective coating and can operate at up to 4 IPS (100 mm/s) printing speed.
The datasheet lists key parameters such as a 150 km lifetime, 300 dpi dot pitch, 81.31 mm effective printing width, and a 30 kΩ thermistor. Electrical pinouts, timing charts, and dimensional drawings are also included for circuit design and integration.
| Operating voltage | 24 V |
|---|---|
| Printing speed | 4 IPS (100 mm/s) |
| Lifetime | 150 km |
| Dot pitch | 300 dpi |
| Thermistor resistance | 30 kΩ |
The printhead can print at up to 4 IPS (100 mm per second).
It is rated for a lifetime of 150 km of printing.
The device operates from a standard 24 V supply.
