KD2004-DC10A is a 24 V standard thick film thermal printhead with a printing speed up to 6 inches / s that has been developed mainly for label printer use.
The KD2004-DC10A printhead is a 24 V standard thick‑film thermal device designed for high‑speed label, barcode and ticket printers. It offers a printing speed of up to 6 inches per second (150 mm/s) and a rated life of 150 km, making it suitable for demanding printing applications.

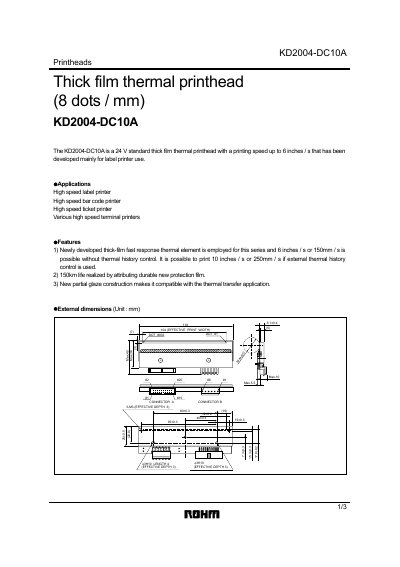

The datasheet provides full technical details, including dot density (8 dots/mm), maximum printing width (20 mm), pin assignments for connectors A and B, timing charts, and electrical characteristics such as applied voltage and resistance values. An appendix outlines usage notes and export control information.
| Operating voltage | 24 V |
|---|---|
| Printing speed | 6 in/s |
| Rated life | 150 km |
| Dot density | 8 dots/mm |
It can print at up to 6 inches per second (150 mm/s).
The printhead is rated for a life of 150 km.
It operates from a 24 V supply.
