KD3006-DC92A is a developing type of GL40 series mainly used for label printers. It adopts low coefficient of abrasion and conductive protection coat to achieve high speed and good printing quality. KD3006-DC92A is a 24V standard thick film thermal print head with high speed, high quality printing, high durability, long life, and strong resistance to abrasion.
The KD3006-DC92A is a 24 V thick‑film thermal printhead from ROHM’s GL40 series, designed for high‑speed label, barcode and ticket printers. It features a low‑abrasion coating, high printing speed (up to 4 in/s or 100 mm/s) and a long life of 150 km.

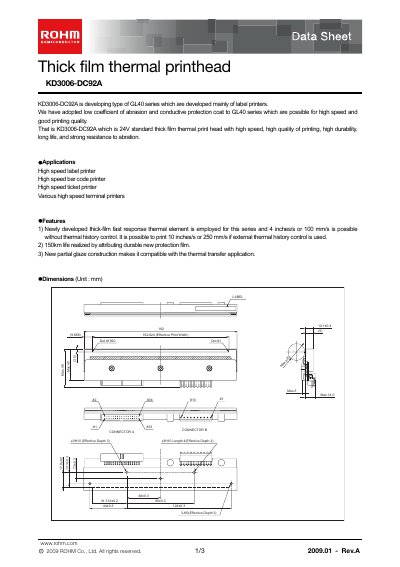

The document provides detailed dimensions, equivalent circuit diagrams, pin assignments, and key electrical characteristics such as average resistance per dot (0.0847 Ω) and maximum clock frequency (30 MHz).
| Standard operating voltage | 24 V |
|---|---|
| Printing speed (no external control) | 4 in/s (100 mm/s) |
| Printing speed (with external thermal history control) | 10 in/s (250 mm/s) |
| Running life | 150 km |
It is suitable for high‑speed label printers, high‑speed barcode printers, high‑speed ticket printers and various other high‑speed terminal printers.
The printhead operates at a standard voltage of 24 V.
It can print at up to 4 inches per second (100 mm/s) without external thermal history control.
The printhead is rated for a running life of about 150 km.
